Android 替身版Android插件化方案

文章目录 [隐藏]

示例代码：
https://gitee.com/vigiles/ghost-plugin-demo

1.项目

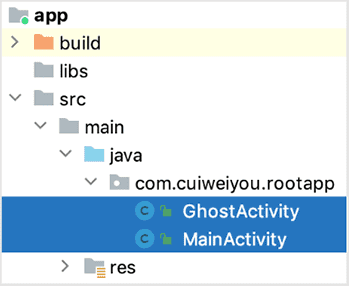

1.1.宿主

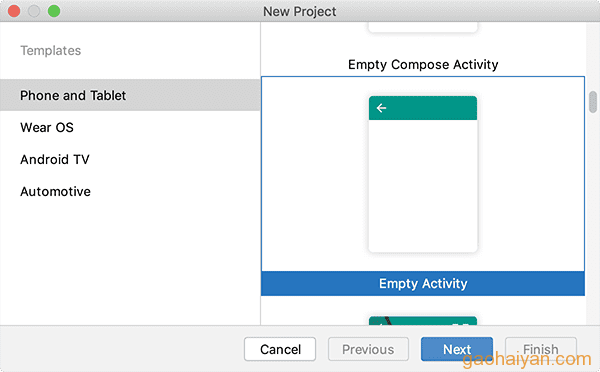

打开AndroidStudio，新建项目，PhoneAndTablet项目。

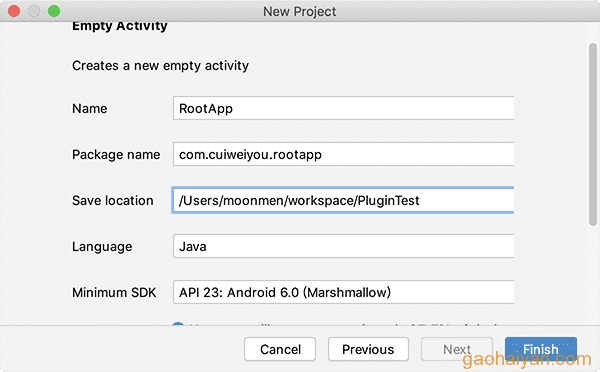

填写配置信息。

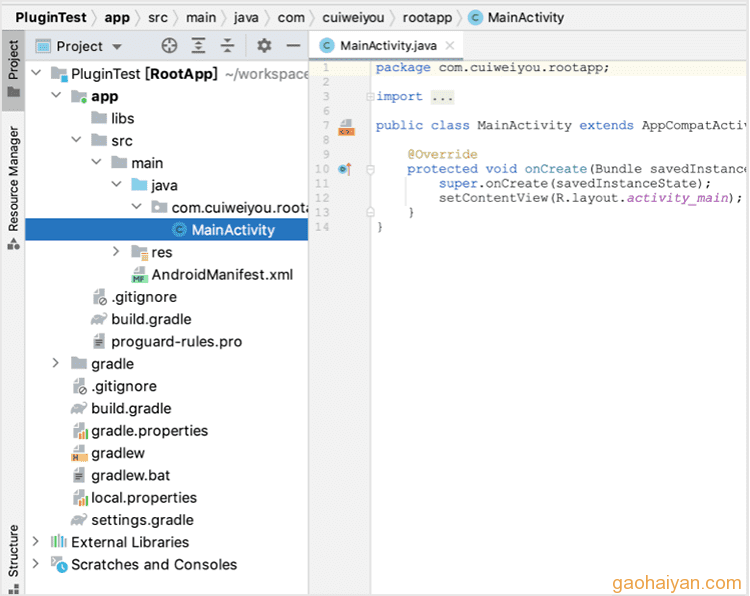

默认入口宿主模块是app。

1.2.中间人

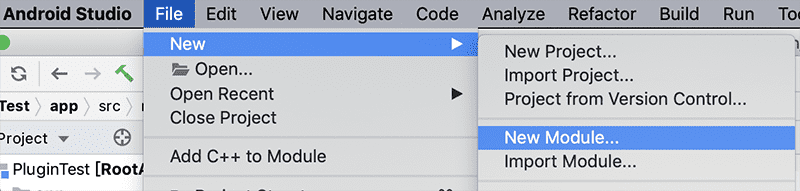

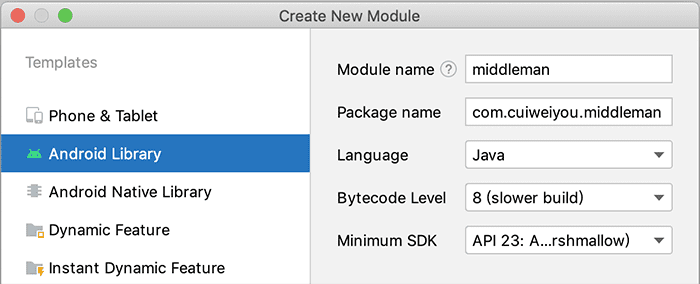

创建一个新的模块。

模块类型是Library。填写模块名及其它配置。

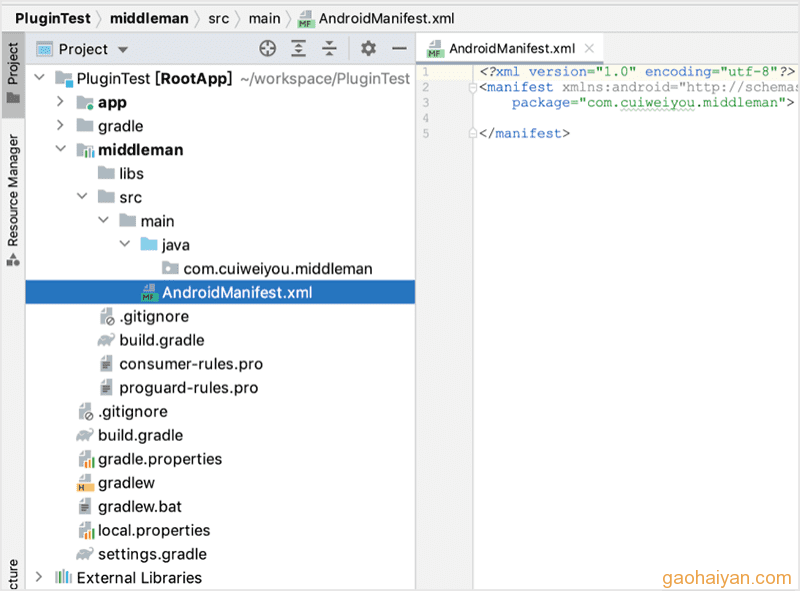

模块内默认为空。

1.3.插件

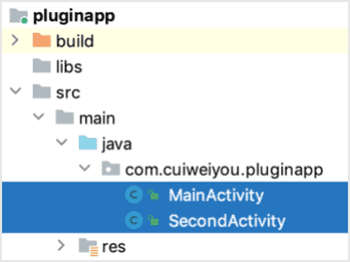

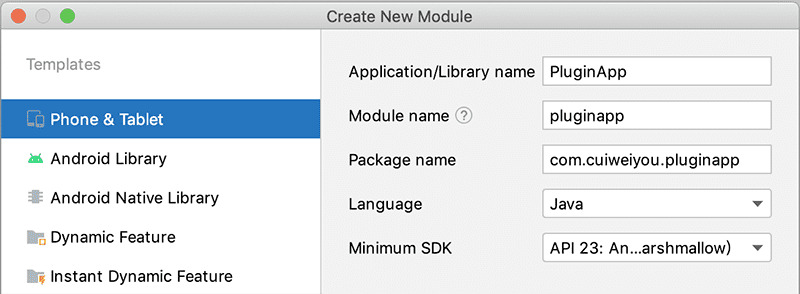

新建模块。

类型和入口模块相同，PhoneAndTablet。

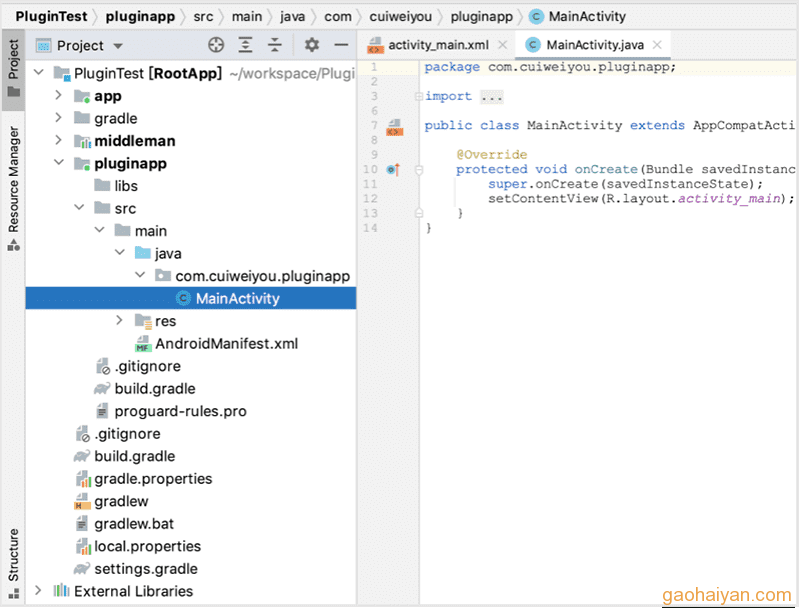

模块自动创建默认的入口Activity。

1.4.添加依赖

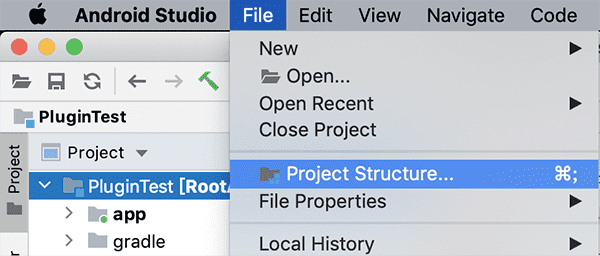

配置项目结构。

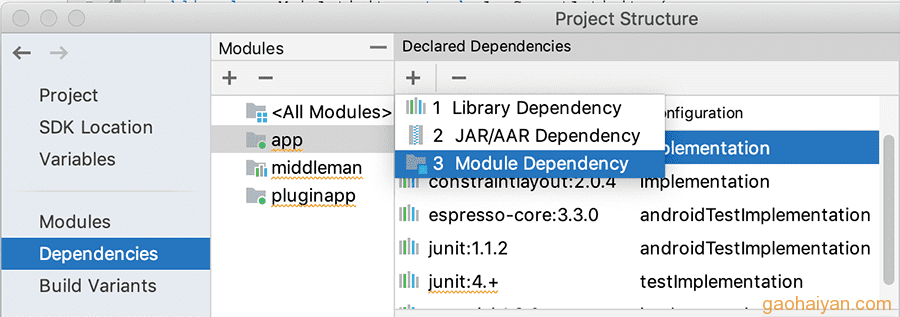

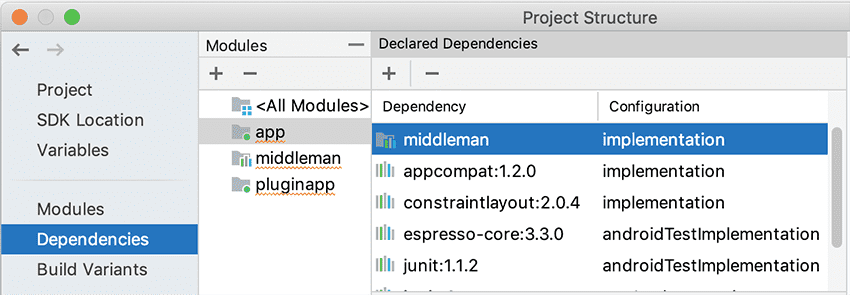

依赖面板，选择宿主模块和插件模块，添加其依赖模块为中间人模块。

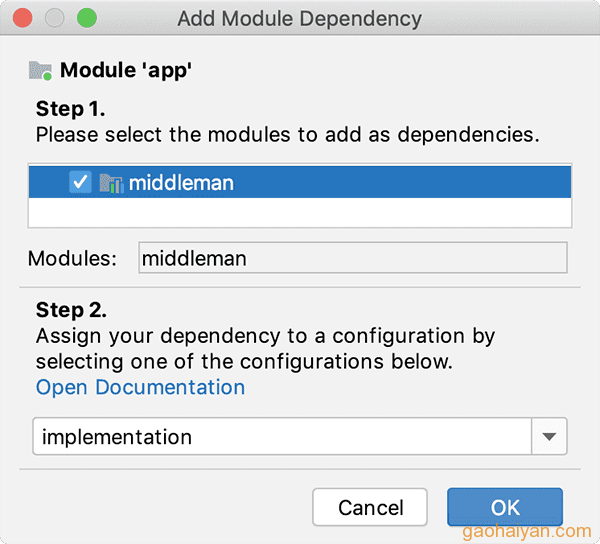

选择中间人模块。

确定，依赖列表出现中间人。

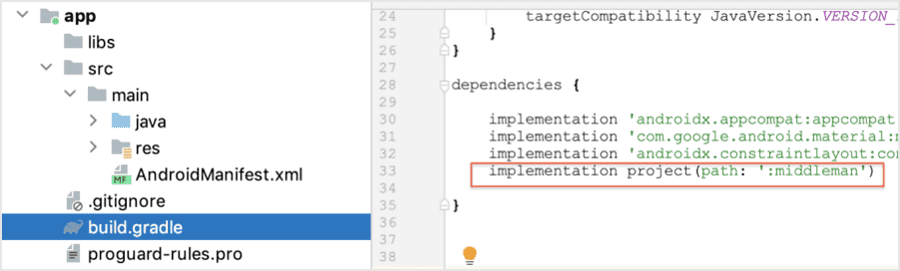

即在宿主和插件的gradle里添加引用中间人。

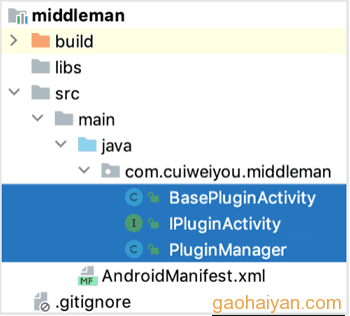

2.中间人

充当桥梁，标准。插件依据此标准创造；宿主依据此标准调用。

2.1.工具类

职责是加载插件apk，并创造专属的各种上下文相关对象。并同时被插件和宿主使用。

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.res.AssetManager;
import android.content.res.Resources;
import android.util.Log;
import java.io.File;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import dalvik.system.DexClassLoader;

public class PluginManager {

    private static PluginManager instance = new PluginManager();

    private Context context;
    private DexClassLoader dexClassLoader;
    private PackageInfo packageInfo;
    private Resources resources;

    private PluginManager() {
    }

    public static PluginManager getInstance() {
        return instance;
    }

    /**
     * 传入当前应用(宿主)的ctx
     *
     * @param context 宿主的ctx
     */
    public void setContext(Context context) {
        this.context = context;
        Log.e("ard", "中间人：向我的插件mng放了 context");
    }

    /**
     * 加载插件apk文件
     *
     * @param path 文件路径
     */
    public void loadPluginApkFile(String path) {
        File outDexFile = context.getDir("dex", Context.MODE_PRIVATE);                                           // 当前应用(宿主)的内部私有存储路径
        dexClassLoader = new DexClassLoader(path, outDexFile.getAbsolutePath(), null, context.getClassLoader()); // 插件apk的类加载器
        PackageManager packageManager = context.getPackageManager();                                             // 包管理器-系统级单例
        packageInfo = packageManager.getPackageArchiveInfo(path, PackageManager.GET_ACTIVITIES);                 // 插件apk内的全部aty
        try {
            Class<AssetManager> assetManagerClass = AssetManager.class;
            AssetManager assetManager = assetManagerClass.newInstance(); // 创建一个AssetManager
            Method addAssetPath = assetManagerClass.getMethod("addAssetPath", String.class);
            addAssetPath.invoke(assetManager, path);                     // 给AssetManager设置apk路径
            Resources resources = context.getResources();
            this.resources = new Resources(assetManager, resources.getDisplayMetrics(), resources.getConfiguration()); // 插件apk的Resource
        } catch (InstantiationException e) {
            Log.e("ard", "中间人：assetsmng实例化错误：" + e.getMessage());
        } catch (IllegalAccessException e) {
            Log.e("ard", "中间人：assetsmng实例反射方法调用非法：" + e.getMessage());
        } catch (NoSuchMethodException e) {
            Log.e("ard", "中间人：assetsmng实例反射方法错误：" + e.getMessage());
        } catch (InvocationTargetException e) {
            Log.e("ard", "中间人：assetsmng实例反射方法调用错误" + e.getMessage());
        }
        Log.e("ard", "中间人：我的插件mng加载了插件apk");
    }

    public DexClassLoader getDexClassLoader() {
        Log.e("ard", "中间人：从我的插件mng拿了 DexClassLoader");
        return dexClassLoader;
    }

    public PackageInfo getPackageInfo() {
        Log.e("ard", "中间人：从我的插件mng拿了 PackageInfo");
        return packageInfo;
    }

    public Resources getResources() {
        Log.e("ard", "中间人：从我的插件mng拿了 Resources");
        return resources;
    }
}

import android.content.Context;

import android.content.pm.PackageInfo;

import android.content.pm.PackageManager;

import android.content.res.AssetManager;

import android.content.res.Resources;

import android.util.Log;

import java.io.File;

import java.lang.reflect.InvocationTargetException;

import java.lang.reflect.Method;

import dalvik.system.DexClassLoader;

public class PluginManager {

private static PluginManager instance = new PluginManager();

private Context context;

private DexClassLoader dexClassLoader;

private PackageInfo packageInfo;

private Resources resources;

private PluginManager() {

}

public static PluginManager getInstance() {

return instance;

}

/**

* 传入当前应用(宿主)的ctx

* @param context 宿主的ctx

public void setContext(Context context) {

this.context = context;

Log.e("ard", "中间人：向我的插件mng放了 context");

}

/**

* 加载插件apk文件

* @param path 文件路径

public void loadPluginApkFile(String path) {

File outDexFile = context.getDir("dex", Context.MODE_PRIVATE); // 当前应用(宿主)的内部私有存储路径

dexClassLoader = new DexClassLoader(path, outDexFile.getAbsolutePath(), null, context.getClassLoader()); // 插件apk的类加载器

PackageManager packageManager = context.getPackageManager(); // 包管理器-系统级单例

packageInfo = packageManager.getPackageArchiveInfo(path, PackageManager.GET_ACTIVITIES); // 插件apk内的全部aty

try {

Class<AssetManager> assetManagerClass = AssetManager.class;

AssetManager assetManager = assetManagerClass.newInstance(); // 创建一个AssetManager

Method addAssetPath = assetManagerClass.getMethod("addAssetPath", String.class);

addAssetPath.invoke(assetManager, path); // 给AssetManager设置apk路径

Resources resources = context.getResources();

this.resources = new Resources(assetManager, resources.getDisplayMetrics(), resources.getConfiguration()); // 插件apk的Resource

} catch (InstantiationException e) {

Log.e("ard", "中间人：assetsmng实例化错误：" + e.getMessage());

} catch (IllegalAccessException e) {

Log.e("ard", "中间人：assetsmng实例反射方法调用非法：" + e.getMessage());

} catch (NoSuchMethodException e) {

Log.e("ard", "中间人：assetsmng实例反射方法错误：" + e.getMessage());

} catch (InvocationTargetException e) {

Log.e("ard", "中间人：assetsmng实例反射方法调用错误" + e.getMessage());

}

Log.e("ard", "中间人：我的插件mng加载了插件apk");

}

public DexClassLoader getDexClassLoader() {

Log.e("ard", "中间人：从我的插件mng拿了 DexClassLoader");

return dexClassLoader;

}

public PackageInfo getPackageInfo() {

Log.e("ard", "中间人：从我的插件mng拿了 PackageInfo");

return packageInfo;

}

public Resources getResources() {

Log.e("ard", "中间人：从我的插件mng拿了 Resources");

return resources;

}

2.2.插件的接口

即插件的建造标准、宿主的使用标准。目的在于接管插件的生命周期。

import android.content.ContentResolver;
import android.content.Context;
import android.content.Intent;
import android.content.pm.ApplicationInfo;
import android.content.pm.PackageManager;
import android.content.res.AssetManager;
import android.content.res.Resources;
import android.os.Bundle;
import android.os.Looper;
import android.os.PersistableBundle;
import android.view.KeyEvent;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Window;
import android.view.WindowManager;
import androidx.appcompat.app.AppCompatActivity;
import java.util.concurrent.Executor;

/**
 * Activity的生命周期接口
 * 插件的Activity都须实现此接口
 */
public interface IPluginActivity {
    public void attach(AppCompatActivity rootActivity);
    public void onCreate( Bundle savedInstanceState);
    public void onNewIntent(Intent intent);
    public void onStart();
    public void onRestart();
    public void onResume();
    public void onPause();
    public void onStop();
    public void onDestroy();
    public void setContentView(View view);
    public void setContentView(int layoutResID);
    public <T extends View> T findViewById(int id);
    public Intent getIntent();
    public void onSaveInstanceState(Bundle outState);
    public void onSaveInstanceState(Bundle outState, PersistableBundle outPersistentState);
    public boolean onKeyDown(int keyCode, KeyEvent event);
    public void onBackPressed();
    public void onTouchEvent();
    public LayoutInflater getLayoutInflater();
    public ClassLoader getClassLoader();
    public Context getBaseContext();
    public AssetManager getAssets();
    public Resources getResources();
    public PackageManager getPackageManager();
    public ContentResolver getContentResolver();
    public Looper getMainLooper();
    public Executor getMainExecutor();
    public Context getApplicationContext();
    public void startActivity(Intent intent);
    public void startActivityForResult(Intent intent, int requestCode);
    public WindowManager getWindowManager();
    public ApplicationInfo getApplicationInfo();
    public Window getWindow();
}

import android.content.ContentResolver;

import android.content.Context;

import android.content.Intent;

import android.content.pm.ApplicationInfo;

import android.content.pm.PackageManager;

import android.content.res.AssetManager;

import android.content.res.Resources;

import android.os.Bundle;

import android.os.Looper;

import android.os.PersistableBundle;

import android.view.KeyEvent;

import android.view.LayoutInflater;

import android.view.View;

import android.view.Window;

import android.view.WindowManager;

import androidx.appcompat.app.AppCompatActivity;

import java.util.concurrent.Executor;

/**

* Activity的生命周期接口

* 插件的Activity都须实现此接口

public interface IPluginActivity {

public void attach(AppCompatActivity rootActivity);

public void onCreate( Bundle savedInstanceState);

public void onNewIntent(Intent intent);

public void onStart();

public void onRestart();

public void onResume();

public void onPause();

public void onStop();

public void onDestroy();

public void setContentView(View view);

public void setContentView(int layoutResID);

public <T extends View> T findViewById(int id);

public Intent getIntent();

public void onSaveInstanceState(Bundle outState);

public void onSaveInstanceState(Bundle outState, PersistableBundle outPersistentState);

public boolean onKeyDown(int keyCode, KeyEvent event);

public void onBackPressed();

public void onTouchEvent();

public LayoutInflater getLayoutInflater();

public ClassLoader getClassLoader();

public Context getBaseContext();

public AssetManager getAssets();

public Resources getResources();

public PackageManager getPackageManager();

public ContentResolver getContentResolver();

public Looper getMainLooper();

public Executor getMainExecutor();

public Context getApplicationContext();

public void startActivity(Intent intent);

public void startActivityForResult(Intent intent, int requestCode);

public WindowManager getWindowManager();

public ApplicationInfo getApplicationInfo();

public Window getWindow();

}

2.3.接口实现类

每个插件的Activity都要实现标准，这里统统实现作为父类，简化代码。

import android.content.ContentResolver;
import android.content.Context;
import android.content.Intent;
import android.content.pm.ApplicationInfo;
import android.content.pm.PackageManager;
import android.content.res.AssetManager;
import android.content.res.Resources;
import android.os.Build;
import android.os.Bundle;
import android.os.Looper;
import android.os.PersistableBundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Window;
import android.view.WindowManager;
import androidx.annotation.RequiresApi;
import androidx.appcompat.app.AppCompatActivity;
import java.util.concurrent.Executor;

/*
 * 插件不是系统加载的，没有天生的生命周期。
 * 实现IPluginActivityLifecycle，强加生命，赋予上下文。
 *
 * */
public class BasePluginActivity extends AppCompatActivity implements IPluginActivity {

    /* 通过中间人传入的应用(宿主)的上下文 */
    protected AppCompatActivity that;

    @Override
    public void attach(AppCompatActivity rootActivity) {
        that = rootActivity;
        Log.e("ard", "中间人base：获得上下文：" + that.getClass().getSimpleName());
    }

    @Override
    public void setContentView(View view) {
        if (null == that) {
            super.setContentView(view);
        } else {
            that.setContentView(view);
        }
        Log.e("ard", "中间人base：执行：setContentView(View view)");
    }

    @Override
    public void setContentView(int layoutResID) {
        that.setContentView(layoutResID);
        Log.e("ard", "中间人base：执行：setContentView(int layoutResID)");
    }

    @Override
    public <T extends View> T findViewById(int id) {
        Log.e("ard", "中间人base：执行：View findViewById(int id)");
        return that.findViewById(id);
    }

    @Override
    public Intent getIntent() {
        Log.e("ard", "中间人base：执行：Intent getIntent()");
        return that.getIntent();
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        Log.e("ard", "中间人base：执行：onCreate(Bundle savedInstanceState)");
    }

    @Override
    public void onStart() {
        Log.e("ard", "中间人base：执行：onStart()");
    }

    @Override
    public void onRestart() {
        Log.e("ard", "中间人base：执行：onRestart()");
    }

    @Override
    public void onNewIntent(Intent intent) {
        Log.e("ard", "中间人base：执行：onNewIntent(intent)");
    }

    @Override
    public void onResume() {
        Log.e("ard", "中间人base：执行：onResume()");
    }

    @Override
    public void onPause() {
        Log.e("ard", "中间人base：执行：onPause()");
    }

    @Override
    public void onStop() {
        Log.e("ard", "中间人base：执行：onStop()");
    }

    @Override
    public void onDestroy() {
        Log.e("ard", "中间人base：执行：onDestroy()");
    }

    @Override
    public void onSaveInstanceState(Bundle outState) {
        Log.e("ard", "中间人base：执行：onSaveInstanceState(outState)");
    }

    @Override
    public void onSaveInstanceState(Bundle outState, PersistableBundle outPersistentState) {
        Log.e("ard", "中间人base：执行：onSaveInstanceState(outState, outPersistentState)");
    }

    @Override
    public void onTouchEvent() {
        Log.e("ard", "中间人base：执行：onTouchEvent()");
    }

    @Override
    public LayoutInflater getLayoutInflater() {
        Log.e("ard", "中间人base：执行：LayoutInflater getLayoutInflater()");
        return that.getWindow().getLayoutInflater();
    }

    @Override
    public ClassLoader getClassLoader() {
        Log.e("ard", "中间人base：执行：ClassLoader getClassLoader()");
        return PluginManager.getInstance().getDexClassLoader();
    }

    public Context getBaseContext() {
        Log.e("ard", "中间人base：执行：Context getBaseContext()");
        return that.getBaseContext();
    }

    @Override
    public AssetManager getAssets() {
        Log.e("ard", "中间人base：执行：AssetManager getAssets()");
        return that.getAssets();
    }

    @Override
    public Resources getResources() {
        Log.e("ard", "中间人base：执行：Resources getResources()");
        return PluginManager.getInstance().getResources();
    }

    @Override
    public PackageManager getPackageManager() {
        Log.e("ard", "中间人base：执行：PackageManager getPackageManager()");
        return that.getPackageManager();
    }

    @Override
    public ContentResolver getContentResolver() {
        Log.e("ard", "中间人base：执行：ContentResolver getContentResolver()");
        return that.getContentResolver();
    }

    @Override
    public Looper getMainLooper() {
        Log.e("ard", "中间人base：执行：Looper getMainLooper()");
        return that.getMainLooper();
    }

    @RequiresApi(api = Build.VERSION_CODES.P)
    @Override
    public Executor getMainExecutor() {
        Log.e("ard", "中间人base：执行：Executor getMainExecutor()");
        return that.getMainExecutor();
    }

    @Override
    public Context getApplicationContext() {
        Log.e("ard", "中间人base：执行：Context getApplicationContext()");
        return that.getApplicationContext();
    }

    @Override
    public void startActivity(Intent intent) {
        Intent i = new Intent();
        i.putExtra("className", intent.getComponent().getClassName());
        that.startActivity(i);
        Log.e("ard", "中间人base：执行：startActivity(Intent intent)");
    }

    @Override
    public void startActivityForResult(Intent intent, int requestCode) {
        Intent i = new Intent();
        i.putExtra("className", intent.getComponent().getClassName());
        that.startActivityForResult(i, requestCode);
        Log.e("ard", "中间人base：执行：startActivityForResult(intent, requestCode)");
    }

    @Override
    public WindowManager getWindowManager() {
        Log.e("ard", "中间人base：执行：WindowManager getWindowManager()");
        return that.getWindowManager();
    }

    @Override
    public ApplicationInfo getApplicationInfo() {
        Log.e("ard", "中间人base：执行：ApplicationInfo getApplicationInfo()");
        return that.getApplicationInfo();
    }

    @Override
    public Window getWindow() {
        Log.e("ard", "中间人base：执行：Window getWindow()");
        return that.getWindow();
    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

import android.content.ContentResolver;

import android.content.Context;

import android.content.Intent;

import android.content.pm.ApplicationInfo;

import android.content.pm.PackageManager;

import android.content.res.AssetManager;

import android.content.res.Resources;

import android.os.Build;

import android.os.Bundle;

import android.os.Looper;

import android.os.PersistableBundle;

import android.util.Log;

import android.view.LayoutInflater;

import android.view.View;

import android.view.Window;

import android.view.WindowManager;

import androidx.annotation.RequiresApi;

import androidx.appcompat.app.AppCompatActivity;

import java.util.concurrent.Executor;

* 插件不是系统加载的，没有天生的生命周期。

* 实现IPluginActivityLifecycle，强加生命，赋予上下文。

* */

public class BasePluginActivity extends AppCompatActivity implements IPluginActivity {

/* 通过中间人传入的应用(宿主)的上下文 */

protected AppCompatActivity that;

@Override

public void attach(AppCompatActivity rootActivity) {

that = rootActivity;

Log.e("ard", "中间人base：获得上下文：" + that.getClass().getSimpleName());

}

@Override

public void setContentView(View view) {

if (null == that) {

super.setContentView(view);

} else {

that.setContentView(view);

}

Log.e("ard", "中间人base：执行：setContentView(View view)");

}

@Override

public void setContentView(int layoutResID) {

that.setContentView(layoutResID);

Log.e("ard", "中间人base：执行：setContentView(int layoutResID)");

}

@Override

public <T extends View> T findViewById(int id) {

Log.e("ard", "中间人base：执行：View findViewById(int id)");

return that.findViewById(id);

}

@Override

public Intent getIntent() {

Log.e("ard", "中间人base：执行：Intent getIntent()");

return that.getIntent();

}

@Override

public void onCreate(Bundle savedInstanceState) {

Log.e("ard", "中间人base：执行：onCreate(Bundle savedInstanceState)");

}

@Override

public void onStart() {

Log.e("ard", "中间人base：执行：onStart()");

}

@Override

public void onRestart() {

Log.e("ard", "中间人base：执行：onRestart()");

}

@Override

public void onNewIntent(Intent intent) {

Log.e("ard", "中间人base：执行：onNewIntent(intent)");

}

@Override

public void onResume() {

Log.e("ard", "中间人base：执行：onResume()");

}

@Override

public void onPause() {

Log.e("ard", "中间人base：执行：onPause()");

}

@Override

public void onStop() {

Log.e("ard", "中间人base：执行：onStop()");

}

@Override

public void onDestroy() {

Log.e("ard", "中间人base：执行：onDestroy()");

}

@Override

public void onSaveInstanceState(Bundle outState) {

Log.e("ard", "中间人base：执行：onSaveInstanceState(outState)");

}

@Override

public void onSaveInstanceState(Bundle outState, PersistableBundle outPersistentState) {

Log.e("ard", "中间人base：执行：onSaveInstanceState(outState, outPersistentState)");

}

@Override

public void onTouchEvent() {

Log.e("ard", "中间人base：执行：onTouchEvent()");

}

@Override

public LayoutInflater getLayoutInflater() {

Log.e("ard", "中间人base：执行：LayoutInflater getLayoutInflater()");

return that.getWindow().getLayoutInflater();

}

@Override

public ClassLoader getClassLoader() {

Log.e("ard", "中间人base：执行：ClassLoader getClassLoader()");

return PluginManager.getInstance().getDexClassLoader();

}

public Context getBaseContext() {

Log.e("ard", "中间人base：执行：Context getBaseContext()");

return that.getBaseContext();

}

@Override

public AssetManager getAssets() {

Log.e("ard", "中间人base：执行：AssetManager getAssets()");

return that.getAssets();

}

@Override

public Resources getResources() {

Log.e("ard", "中间人base：执行：Resources getResources()");

return PluginManager.getInstance().getResources();

}

@Override

public PackageManager getPackageManager() {

Log.e("ard", "中间人base：执行：PackageManager getPackageManager()");

return that.getPackageManager();

}

@Override

public ContentResolver getContentResolver() {

Log.e("ard", "中间人base：执行：ContentResolver getContentResolver()");

return that.getContentResolver();

}

@Override

public Looper getMainLooper() {

Log.e("ard", "中间人base：执行：Looper getMainLooper()");

return that.getMainLooper();

}

@RequiresApi(api = Build.VERSION_CODES.P)

@Override

public Executor getMainExecutor() {

Log.e("ard", "中间人base：执行：Executor getMainExecutor()");

return that.getMainExecutor();

}

@Override

public Context getApplicationContext() {

Log.e("ard", "中间人base：执行：Context getApplicationContext()");

return that.getApplicationContext();

}

@Override

public void startActivity(Intent intent) {

Intent i = new Intent();

i.putExtra("className", intent.getComponent().getClassName());

that.startActivity(i);

Log.e("ard", "中间人base：执行：startActivity(Intent intent)");

}

@Override

public void startActivityForResult(Intent intent, int requestCode) {

Intent i = new Intent();

i.putExtra("className", intent.getComponent().getClassName());

that.startActivityForResult(i, requestCode);

Log.e("ard", "中间人base：执行：startActivityForResult(intent, requestCode)");

}

@Override

public WindowManager getWindowManager() {

Log.e("ard", "中间人base：执行：WindowManager getWindowManager()");

return that.getWindowManager();

}

@Override

public ApplicationInfo getApplicationInfo() {

Log.e("ard", "中间人base：执行：ApplicationInfo getApplicationInfo()");

return that.getApplicationInfo();

}

@Override

public Window getWindow() {

Log.e("ard", "中间人base：执行：Window getWindow()");

return that.getWindow();

}

3.插件

插件即普通的安卓应用。按照平常开发即可。但因为须要实现中间人规定的接口，单独运行会出问题。

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.cuiweiyou.pluginapp">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.RootApp">

        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <activity android:name=".SecondActivity"/>
    </application>

</manifest>

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.cuiweiyou.pluginapp">

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/Theme.RootApp">

<activity

android:name=".MainActivity"

android:exported="true">

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

3.1.入口Activity

这里继承的是中间人的BasePluginActivity，实际还是普通的Activity。但个别之处有问题。

import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import com.cuiweiyou.middleman.BasePluginActivity;

public class MainActivity extends BasePluginActivity implements View.OnClickListener {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_one);

        findViewById(R.id.tv).setOnClickListener(this);
    }

    // 不能使用布局文件中配置android:onClick的形式。
    @Override
    public void onClick(View v) {
        Log.e("ard", "插件：点击，下一个aty");
        Intent i = new Intent(that, SecondActivity.class);
        startActivity(i);
    }
}

import android.content.Intent;

import android.os.Bundle;

import android.util.Log;

import android.view.View;

import com.cuiweiyou.middleman.BasePluginActivity;

public class MainActivity extends BasePluginActivity implements View.OnClickListener {

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_one);

findViewById(R.id.tv).setOnClickListener(this);

}

// 不能使用布局文件中配置android:onClick的形式。

@Override

public void onClick(View v) {

Log.e("ard", "插件：点击，下一个aty");

Intent i = new Intent(that, SecondActivity.class);

startActivity(i);

}

3.2.被调起Activity

继承BasePluginActivity。

import android.os.Bundle;
import com.cuiweiyou.middleman.BasePluginActivity;

public class SecondActivity extends BasePluginActivity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_two);
    }

}

import android.os.Bundle;

import com.cuiweiyou.middleman.BasePluginActivity;

public class SecondActivity extends BasePluginActivity {

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_two);

}

4.宿主

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.cuiweiyou.rootapp">

    <!-- 插件apk通常在sdcard上 -->
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.RootApp">

        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <!-- 替身aty -->
        <activity android:name=".GhostActivity"/>
    </application>

</manifest>

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.cuiweiyou.rootapp">

<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/Theme.RootApp">

<activity

android:name=".MainActivity"

android:exported="true">

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

4.1.插件的替身

想调用插件，就调用替身。用替身管理插件的生命周期。

import android.content.Intent;
import android.content.res.Resources;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import com.cuiweiyou.middleman.IPluginActivity;
import com.cuiweiyou.middleman.PluginManager;

/*
 * 替身Activity。通过这个aty跳转到插件的aty。
 * 必须注册到宿主的Manifest。
 */
public class GhostActivity extends AppCompatActivity {

    private IPluginActivity pluginActivity;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        Log.e("ard", "替身：onCreate()");
        super.onCreate(savedInstanceState);

        String className = getIntent().getStringExtra("className");
        Log.e("ard", "替身：拿到插件aty：" + className);
        try {
            Class<?> aClass = PluginManager.getInstance().getDexClassLoader().loadClass(className);
            Object instance = aClass.newInstance();
            if (instance instanceof IPluginActivity){
                pluginActivity = (IPluginActivity) instance;
                pluginActivity.attach(this);
                Bundle bundle = new Bundle();
                pluginActivity.onCreate(bundle);
                Log.e("ard", "替身：插件aty是IPluginActivityLifecycle");
            }else{
                Log.e("ard", "替身：插件aty 不是 IPluginActivityLifecycle");
            }
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        } catch (InstantiationException e) {
            e.printStackTrace();
        }
    }

    @Override
    public void setContentView(int layoutResID) {
        Log.e("ard", "替身：super.setContentView(layoutResID)");
        super.setContentView(layoutResID);
        // pluginActivity.setContentView(layoutResID); // 死循环
    }

    @Override
    public void setContentView(View view) {
        Log.e("ard", "替身：super.setContentView(view)");
        super.setContentView(view);
        // pluginActivity.setContentView(view); // 死循环
    }

    @Override
    protected void onSaveInstanceState(@NonNull Bundle outState) {
        Log.e("ard", "替身：onSaveInstanceState(outState)");
        super.onSaveInstanceState(outState);
        pluginActivity.onSaveInstanceState(outState);
    }

    @Override
    protected void onStart() {
        Log.e("ard", "替身：onStart()");
        super.onStart();
        pluginActivity.onStart();
    }


    public void onRestart() {
        Log.e("ard", "替身：onRestart()");
        super.onRestart();
        pluginActivity.onRestart();
    }

    public void onResume() {
        Log.e("ard", "替身：onResume()");
        super.onResume();
        pluginActivity.onResume();
    }

    public void onPause() {
        Log.e("ard", "替身：onPause()");
        super.onPause();
        pluginActivity.onPause();
    }

    public void onStop() {
        Log.e("ard", "替身：onStop()");
        super.onStop();
        pluginActivity.onStop();
    }

    public void onDestroy() {
        Log.e("ard", "替身：onDestroy()");
        super.onDestroy();
        pluginActivity.onDestroy();
    }

    @Override
    public ClassLoader getClassLoader() {
        Log.e("ard", "替身：getClassLoader()");
        return PluginManager.getInstance().getDexClassLoader();
    }

    @Override
    public Resources getResources() {
        Log.e("ard", "替身：getResources()");
        return PluginManager.getInstance().getResources();
    }

    @Override
    public void startActivity(Intent intent) {
        Log.e("ard", "替身：startActivity(i)");
        String className = intent.getStringExtra("className");
        Intent i = new Intent(this, GhostActivity.class);
        i.putExtra("className", className);
        super.startActivity(i);
    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

import android.content.Intent;

import android.content.res.Resources;

import android.os.Bundle;

import android.util.Log;

import android.view.View;

import androidx.annotation.NonNull;

import androidx.appcompat.app.AppCompatActivity;

import com.cuiweiyou.middleman.IPluginActivity;

import com.cuiweiyou.middleman.PluginManager;

* 替身Activity。通过这个aty跳转到插件的aty。

* 必须注册到宿主的Manifest。

public class GhostActivity extends AppCompatActivity {

private IPluginActivity pluginActivity;

@Override

protected void onCreate(Bundle savedInstanceState) {

Log.e("ard", "替身：onCreate()");

super.onCreate(savedInstanceState);

String className = getIntent().getStringExtra("className");

Log.e("ard", "替身：拿到插件aty：" + className);

try {

Class<?> aClass = PluginManager.getInstance().getDexClassLoader().loadClass(className);

Object instance = aClass.newInstance();

if (instance instanceof IPluginActivity){

pluginActivity = (IPluginActivity) instance;

pluginActivity.attach(this);

Bundle bundle = new Bundle();

pluginActivity.onCreate(bundle);

Log.e("ard", "替身：插件aty是IPluginActivityLifecycle");

}else{

Log.e("ard", "替身：插件aty 不是 IPluginActivityLifecycle");

}

} catch (ClassNotFoundException e) {

e.printStackTrace();

} catch (IllegalAccessException e) {

e.printStackTrace();

} catch (InstantiationException e) {

e.printStackTrace();

}

@Override

public void setContentView(int layoutResID) {

Log.e("ard", "替身：super.setContentView(layoutResID)");

super.setContentView(layoutResID);

// pluginActivity.setContentView(layoutResID); // 死循环

}

@Override

public void setContentView(View view) {

Log.e("ard", "替身：super.setContentView(view)");

super.setContentView(view);

// pluginActivity.setContentView(view); // 死循环

}

@Override

protected void onSaveInstanceState(@NonNull Bundle outState) {

Log.e("ard", "替身：onSaveInstanceState(outState)");

super.onSaveInstanceState(outState);

pluginActivity.onSaveInstanceState(outState);

}

@Override

protected void onStart() {

Log.e("ard", "替身：onStart()");

super.onStart();

pluginActivity.onStart();

}

public void onRestart() {

Log.e("ard", "替身：onRestart()");

super.onRestart();

pluginActivity.onRestart();

}

public void onResume() {

Log.e("ard", "替身：onResume()");

super.onResume();

pluginActivity.onResume();

}

public void onPause() {

Log.e("ard", "替身：onPause()");

super.onPause();

pluginActivity.onPause();

}

public void onStop() {

Log.e("ard", "替身：onStop()");

super.onStop();

pluginActivity.onStop();

}

public void onDestroy() {

Log.e("ard", "替身：onDestroy()");

super.onDestroy();

pluginActivity.onDestroy();

}

@Override

public ClassLoader getClassLoader() {

Log.e("ard", "替身：getClassLoader()");

return PluginManager.getInstance().getDexClassLoader();

}

@Override

public Resources getResources() {

Log.e("ard", "替身：getResources()");

return PluginManager.getInstance().getResources();

}

@Override

public void startActivity(Intent intent) {

Log.e("ard", "替身：startActivity(i)");

String className = intent.getStringExtra("className");

Intent i = new Intent(this, GhostActivity.class);

i.putExtra("className", className);

super.startActivity(i);

}

4.2.启动插件

import androidx.appcompat.app.AppCompatActivity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import com.cuiweiyou.middleman.PluginManager;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }

    // 布局中控件点击事件
    public void runPlugin(View view) {
        PluginManager.getInstance().setContext(this);
        PluginManager.getInstance().loadPluginApkFile("/sdcard/ddd.apk"); // sd卡上的插件apk。申请权限略。

        String launcherActivityName = PluginManager.getInstance().getPackageInfo().activities[0].name; // 插件入口
        Intent intent = new Intent(this, GhostActivity.class); // 替身
        intent.putExtra("className", launcherActivityName); // 告诉替身插件的入口
        startActivity(intent); // 启动替身
    }
}

import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;

import android.os.Bundle;

import android.view.View;

import com.cuiweiyou.middleman.PluginManager;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

// 布局中控件点击事件

public void runPlugin(View view) {

PluginManager.getInstance().setContext(this);

PluginManager.getInstance().loadPluginApkFile("/sdcard/ddd.apk"); // sd卡上的插件apk。申请权限略。

String launcherActivityName = PluginManager.getInstance().getPackageInfo().activities[0].name; // 插件入口

Intent intent = new Intent(this, GhostActivity.class); // 替身

intent.putExtra("className", launcherActivityName); // 告诉替身插件的入口

startActivity(intent); // 启动替身

}

- end

声明

本文由 cuiweiyou 原创，转载请注明出处：http://www.gaohaiyan.com/4330.html

承接App定制、企业web站点、办公系统软件设计开发，外包项目，毕设
