OpenCV和Java，模糊、油画

ASR/CV/ML OpenCV和Java，模糊、油画

Imgproc.GaussianBlur
Imgproc.medianBlur
Imgproc.boxFilter
Imgproc.blur
Imgproc.bilateralFilter

工具类见 http://www.gaohaiyan.com/3229.html
本例完整代码：

import java.awt.image.BufferedImage;
import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JSlider;
import javax.swing.event.ChangeEvent;
import javax.swing.event.ChangeListener;
import org.opencv.core.Mat;
import org.opencv.core.Size;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

/**
 * 模糊
 */
public class Blur extends JFrame {

    private JLabel imageView;

    private double gaussian = 1;
    private int median = 1;
    private double box = 1;
    private double normalized = 1;
    private int bilateral = 1;
    private Mat srcMat;

    private int pattern = -1;

    public Blur(String path) {

        JLabel gaussianLabel = new JLabel("高斯模糊:" + gaussian);
        gaussianLabel.setBounds(15, 10, 90, 15);

        JSlider gaussianBar = new JSlider(1, 100);
        gaussianBar.setValue((int) gaussian);
        gaussianBar.setBounds(110, 5, 180, 25);
        gaussianBar.addChangeListener(new ChangeListener() {
            @Override
            public void stateChanged(ChangeEvent e) {
                int value = gaussianBar.getValue();
                if (value % 2 == 0) {
                    value = value + 1;
                }
                gaussian = value * 1.0d;
                gaussianLabel.setText("高斯模糊:" + gaussian);
                pattern = 0;
                setPic();
            }
        });

        JLabel medianLabel = new JLabel("中值模糊:" + median);
        medianLabel.setBounds(15, 40, 80, 15);

        JSlider medianBar = new JSlider(1, 100);
        medianBar.setValue((int) median);
        medianBar.setBounds(110, 35, 180, 25);
        medianBar.addChangeListener(new ChangeListener() {
            @Override
            public void stateChanged(ChangeEvent e) {
                int value = medianBar.getValue();
                if (value % 2 == 0) {
                    value = value + 1;
                }
                median = value;
                medianLabel.setText("中值模糊:" + median);
                pattern = 1;
                setPic();
            }
        });

        JLabel boxLabel = new JLabel("方框模糊:" + box);
        boxLabel.setBounds(15, 70, 80, 15);

        JSlider boxBar = new JSlider(0, 100);
        boxBar.setValue((int) box);
        boxBar.setBounds(110, 65, 180, 25);
        boxBar.addChangeListener(new ChangeListener() {
            @Override
            public void stateChanged(ChangeEvent e) {
                box = boxBar.getValue() * 1.0d;
                boxLabel.setText("方框模糊:" + box);
                pattern = 2;
                setPic();
            }
        });

        JLabel normalizedLabel = new JLabel("归一模糊:" + normalized);
        normalizedLabel.setBounds(15, 100, 80, 15);

        JSlider normalizedBar = new JSlider(0, 100);
        normalizedBar.setValue((int) normalized);
        normalizedBar.setBounds(110, 95, 180, 25);
        normalizedBar.addChangeListener(new ChangeListener() {
            @Override
            public void stateChanged(ChangeEvent e) {
                normalized = normalizedBar.getValue() * 1.0d;
                normalizedLabel.setText("归一模糊:" + normalized);
                pattern = 3;
                setPic();
            }
        });


        JLabel bilateralLabel = new JLabel("双向模糊:" + bilateral);
        bilateralLabel.setBounds(15, 130, 80, 15);

        JSlider bilateralBar = new JSlider(0, 100);
        bilateralBar.setValue((int) bilateral);
        bilateralBar.setBounds(110, 125, 180, 25);
        bilateralBar.addChangeListener(new ChangeListener() {
            @Override
            public void stateChanged(ChangeEvent e) {
                bilateralLabel.setText("双向模糊:" + bilateral);
                bilateral = bilateralBar.getValue();
                pattern = 4;
                setPic();
            }
        });

        srcMat = Imgcodecs.imread(path);
        int width = srcMat.width();
        int height = srcMat.height();

        imageView = new JLabel("");
        imageView.setBounds(0, 160, width, height);

        this.setTitle("图片模糊处理");
        this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        this.setSize(width + 100, height + 170);
        this.getContentPane().setLayout(null);
        this.getContentPane().add(gaussianLabel);
        this.getContentPane().add(gaussianBar);
        this.getContentPane().add(medianLabel);
        this.getContentPane().add(medianBar);
        this.getContentPane().add(boxLabel);
        this.getContentPane().add(boxBar);
        this.getContentPane().add(normalizedLabel);
        this.getContentPane().add(normalizedBar);
        this.getContentPane().add(bilateralLabel);
        this.getContentPane().add(bilateralBar);
        this.getContentPane().add(imageView);

        setPic();
    }

    private void setPic() {
        int rowSize = srcMat.rows();
        int colSize = srcMat.cols();
        int type = srcMat.type();

        if (0 == pattern) { // 高斯
            Mat mat = new Mat(rowSize, colSize, type);
            Imgproc.GaussianBlur(srcMat, mat, new Size(gaussian, gaussian), 0);
            setIcon(mat);
            return;
        }

        if (1 == pattern) { // 中值
            Mat mat = new Mat(rowSize, colSize, type);
            Imgproc.medianBlur(srcMat, mat, median);
            setIcon(mat);
            return;
        }

        if (2 == pattern) { // 方框
            Mat mat = new Mat(rowSize, colSize, type);
            Imgproc.boxFilter(srcMat, mat, srcMat.depth(), new Size(box, box)); // 未解决filter.dispatch.cpp:146: error: (-215:Assertion failed) 0 <= anchor.x && anchor.x < ksize.width && 0 <= anchor.y && anchor.y < ksize.height in function 'init'
            setIcon(mat);
            return;
        }

        if (3 == pattern) { // 归一化
            Mat mat = new Mat(rowSize, colSize, type);
            Imgproc.blur(srcMat, mat, new Size(normalized, normalized)); // 未解决CvException: cv::Exception: OpenCV(3.4.16) filter.dispatch.cpp:146: error: (-215:Assertion failed) 0 <= anchor.x && anchor.x < ksize.width && 0 <= anchor.y && anchor.y < ksize.height in function 'init'
            setIcon(mat);
            return;
        }

        if (4 == pattern) { // 双边
            Mat mat = new Mat(rowSize, colSize, type);
            Imgproc.bilateralFilter(srcMat, mat, bilateral, 120, 120);
            setIcon(mat);
            return;
        }

        setIcon(srcMat);
    }

    private void setIcon(Mat mat) {
        BufferedImage image = CVUtil.matToBufferedImage(mat); // CVUtil 见 http://www.gaohaiyan.com/3229.html
        imageView.setIcon(new ImageIcon(image));
    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

import java.awt.image.BufferedImage;

import javax.swing.ImageIcon;

import javax.swing.JFrame;

import javax.swing.JLabel;

import javax.swing.JSlider;

import javax.swing.event.ChangeEvent;

import javax.swing.event.ChangeListener;

import org.opencv.core.Mat;

import org.opencv.core.Size;

import org.opencv.imgcodecs.Imgcodecs;

import org.opencv.imgproc.Imgproc;

/**

* 模糊

public class Blur extends JFrame {

private JLabel imageView;

private double gaussian = 1;

private int median = 1;

private double box = 1;

private double normalized = 1;

private int bilateral = 1;

private Mat srcMat;

private int pattern = -1;

public Blur(String path) {

JLabel gaussianLabel = new JLabel("高斯模糊:" + gaussian);

gaussianLabel.setBounds(15, 10, 90, 15);

JSlider gaussianBar = new JSlider(1, 100);

gaussianBar.setValue((int) gaussian);

gaussianBar.setBounds(110, 5, 180, 25);

gaussianBar.addChangeListener(new ChangeListener() {

@Override

public void stateChanged(ChangeEvent e) {

int value = gaussianBar.getValue();

if (value % 2 == 0) {

value = value + 1;

}

gaussian = value * 1.0d;

gaussianLabel.setText("高斯模糊:" + gaussian);

pattern = 0;

setPic();

}

});

JLabel medianLabel = new JLabel("中值模糊:" + median);

medianLabel.setBounds(15, 40, 80, 15);

JSlider medianBar = new JSlider(1, 100);

medianBar.setValue((int) median);

medianBar.setBounds(110, 35, 180, 25);

medianBar.addChangeListener(new ChangeListener() {

@Override

public void stateChanged(ChangeEvent e) {

int value = medianBar.getValue();

if (value % 2 == 0) {

value = value + 1;

}

median = value;

medianLabel.setText("中值模糊:" + median);

pattern = 1;

setPic();

}

});

JLabel boxLabel = new JLabel("方框模糊:" + box);

boxLabel.setBounds(15, 70, 80, 15);

JSlider boxBar = new JSlider(0, 100);

boxBar.setValue((int) box);

boxBar.setBounds(110, 65, 180, 25);

boxBar.addChangeListener(new ChangeListener() {

@Override

public void stateChanged(ChangeEvent e) {

box = boxBar.getValue() * 1.0d;

boxLabel.setText("方框模糊:" + box);

pattern = 2;

setPic();

}

});

JLabel normalizedLabel = new JLabel("归一模糊:" + normalized);

normalizedLabel.setBounds(15, 100, 80, 15);

JSlider normalizedBar = new JSlider(0, 100);

normalizedBar.setValue((int) normalized);

normalizedBar.setBounds(110, 95, 180, 25);

normalizedBar.addChangeListener(new ChangeListener() {

@Override

public void stateChanged(ChangeEvent e) {

normalized = normalizedBar.getValue() * 1.0d;

normalizedLabel.setText("归一模糊:" + normalized);

pattern = 3;

setPic();

}

});

JLabel bilateralLabel = new JLabel("双向模糊:" + bilateral);

bilateralLabel.setBounds(15, 130, 80, 15);

JSlider bilateralBar = new JSlider(0, 100);

bilateralBar.setValue((int) bilateral);

bilateralBar.setBounds(110, 125, 180, 25);

bilateralBar.addChangeListener(new ChangeListener() {

@Override

public void stateChanged(ChangeEvent e) {

bilateralLabel.setText("双向模糊:" + bilateral);

bilateral = bilateralBar.getValue();

pattern = 4;

setPic();

}

});

srcMat = Imgcodecs.imread(path);

int width = srcMat.width();

int height = srcMat.height();

imageView = new JLabel("");

imageView.setBounds(0, 160, width, height);

this.setTitle("图片模糊处理");

this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

this.setSize(width + 100, height + 170);

this.getContentPane().setLayout(null);

this.getContentPane().add(gaussianLabel);

this.getContentPane().add(gaussianBar);

this.getContentPane().add(medianLabel);

this.getContentPane().add(medianBar);

this.getContentPane().add(boxLabel);

this.getContentPane().add(boxBar);

this.getContentPane().add(normalizedLabel);

this.getContentPane().add(normalizedBar);

this.getContentPane().add(bilateralLabel);

this.getContentPane().add(bilateralBar);

this.getContentPane().add(imageView);

setPic();

}

private void setPic() {

int rowSize = srcMat.rows();

int colSize = srcMat.cols();

int type = srcMat.type();

if (0 == pattern) { // 高斯

Mat mat = new Mat(rowSize, colSize, type);

Imgproc.GaussianBlur(srcMat, mat, new Size(gaussian, gaussian), 0);

setIcon(mat);

return;

}

if (1 == pattern) { // 中值

Mat mat = new Mat(rowSize, colSize, type);

Imgproc.medianBlur(srcMat, mat, median);

setIcon(mat);

return;

}

if (2 == pattern) { // 方框

Mat mat = new Mat(rowSize, colSize, type);

Imgproc.boxFilter(srcMat, mat, srcMat.depth(), new Size(box, box)); // 未解决filter.dispatch.cpp:146: error: (-215:Assertion failed) 0 <= anchor.x && anchor.x < ksize.width && 0 <= anchor.y && anchor.y < ksize.height in function 'init'

setIcon(mat);

return;

}

if (3 == pattern) { // 归一化

Mat mat = new Mat(rowSize, colSize, type);

Imgproc.blur(srcMat, mat, new Size(normalized, normalized)); // 未解决CvException: cv::Exception: OpenCV(3.4.16) filter.dispatch.cpp:146: error: (-215:Assertion failed) 0 <= anchor.x && anchor.x < ksize.width && 0 <= anchor.y && anchor.y < ksize.height in function 'init'

setIcon(mat);

return;

}

if (4 == pattern) { // 双边

Mat mat = new Mat(rowSize, colSize, type);

Imgproc.bilateralFilter(srcMat, mat, bilateral, 120, 120);

setIcon(mat);

return;

}

setIcon(srcMat);

}

private void setIcon(Mat mat) {

BufferedImage image = CVUtil.matToBufferedImage(mat); // CVUtil 见 http://www.gaohaiyan.com/3229.html

imageView.setIcon(new ImageIcon(image));

}

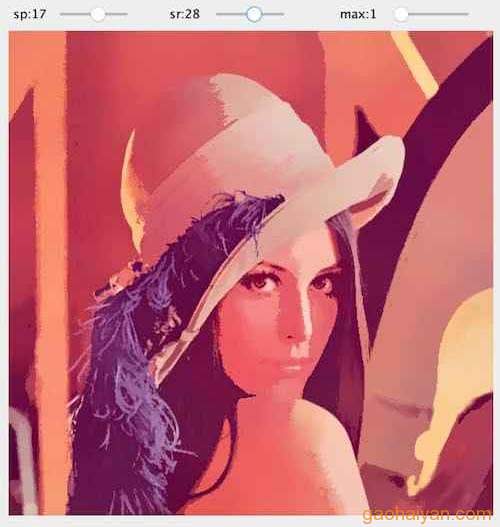

均值漂移，油画效果 MeanShiftFiltering


int sp = 17;
int sr = 30;
int max = 1;
Mat dstMat = new Mat(srcMat.rows(), srcMat.cols(), srcMat.type());
// src，输入图像，8位，三通道的彩色图像，并不要求必须是RGB格式，HSV、YUV等Opencv中的彩色图像格式均可；
// dst，输出图像，跟输入src有同样的大小和数据格式；
// sp，定义的漂移物理空间半径大小；
// sr，定义的漂移色彩空间半径大小；
// maxLevel，定义金字塔的最大层数；
// termcrit，定义的漂移迭代终止条件，可以设置为迭代次数满足终止，迭代目标与中心点偏差满足终止，或者两者的结合；
Imgproc.pyrMeanShiftFiltering(srcMat, dstMat, sp, sr, max, new TermCriteria(TermCriteria.MAX_ITER | TermCriteria.EPS, 50, 0.001));

int sp = 17;

int sr = 30;

int max = 1;

Mat dstMat = new Mat(srcMat.rows(), srcMat.cols(), srcMat.type());

// src，输入图像，8位，三通道的彩色图像，并不要求必须是RGB格式，HSV、YUV等Opencv中的彩色图像格式均可；

// dst，输出图像，跟输入src有同样的大小和数据格式；

// sp，定义的漂移物理空间半径大小；

// sr，定义的漂移色彩空间半径大小；

// maxLevel，定义金字塔的最大层数；

// termcrit，定义的漂移迭代终止条件，可以设置为迭代次数满足终止，迭代目标与中心点偏差满足终止，或者两者的结合；

Imgproc.pyrMeanShiftFiltering(srcMat, dstMat, sp, sr, max, new TermCriteria(TermCriteria.MAX_ITER | TermCriteria.EPS, 50, 0.001));

- end

声明

本文由 cuiweiyou 原创，转载请注明出处：http://www.gaohaiyan.com/3234.html

承接App定制、企业web站点、办公系统软件设计开发，外包项目，毕设

opencv

OpenCV和Java，光学变换：腐蚀、膨胀、形态学变换、边缘检测
OpenCV和Java，Macos中编译OpenCV3.4.16的jar
OpenCV和Java，Windows中使用Eclipse环境的准备
OpenCV和Java，Photo类图片修复示例
